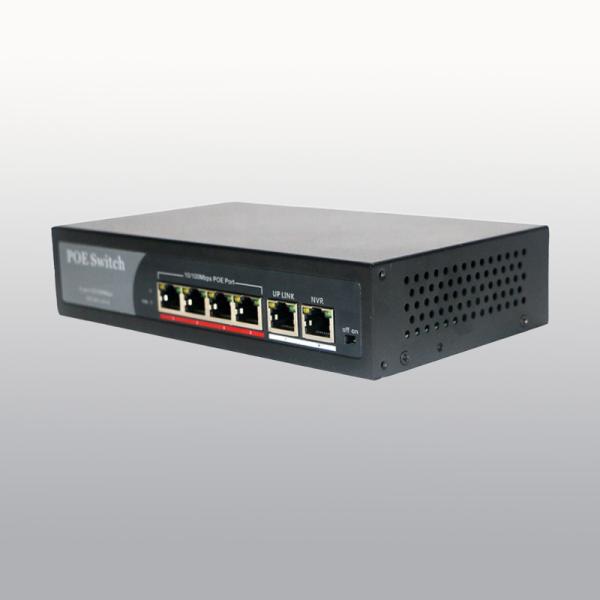

4EP+2E Series FTTH Router Modem 100M POE Switch 4 10 / 100Mbps POE Ports

Brand Name : HK

Model Number : HK-4EP+2E

Certification : CCC, CE, FCC, RoHS

Place of Origin : Shenzhen

MOQ : 100PCS

Price : USD8-USD18

Payment Terms : L/C, D/A, D/P, Western Union

Supply Ability : 5000000PCS/YEAR

Delivery Time : 10-15WORKING DAYS

Packaging Details : 118*95*28mm

Function : POE

Dimension : 195×135×38mm

Weight : 0.65kg

Ports : 6*100M Ethernet port, 4 ports have POE function

Input Voltage : AC100V～240V 50/60Hz

Data Rate : 10/100M adaptive

Distance : 250m

Contact Now

4EP+2E Series POE Switch

4EP+2E Series FTTH Router Modem 100M POE Switch 4 10 / 100Mbps POE Ports

Overview

HK-4EP+2E is a 100M POE Switch with 4 10/100Mbps POE ports, with VLAN DIP it can easily have access to VLAN function. There are 2 10/100Mbps uplink port. Longest POE distance can reach 250M. It is designed for school, family, SEMs, small range surveillance and other network connections. All ports support wire speed forwarding and the rate is up to 100Mbps. Each port support 4KV port lightning protection to ensure stable operation.

Specification

Standards

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX

IEEE802.3af

IEEE802.1q VLAN

IEEE802.3at

IEEE802.3x Flow control

IEEE802.3d Spanning Tree

IEEE802.3p QoS
Certifications CCC, CE, FCC, RoHS
Ethernet Port
  • Connector: RJ45
  • Data Rate: 10/100M adaptive
  • Distance: 250m
  • UTP Type: UTP-5E or higher level
POE Port
  • Power supply: end span
  • Battery core: 1/2+, 3/6-
  • POE port characteristics: 15.4/30W
  • POE total power: 65W
Performance
  • Processing Type: Store and Forward
  • Transmission mode: Full /Half duplex
  • MAC Table Size: 1K
  • Buffer Space: 448K bit
  • Back bandwidth: 1.2G
  • Time Delay: ＜150μs
Power
  • Power Type: built-in power supply
  • Input Voltage: AC100V～240V 50/60Hz
  • Connector: AC Socket
  • Power Consumption: 1.4W～3W
Environment
  • Storage Temperature: -40～70℃
  • Operating Temperature: -10～55℃
  • Relative Humidity: 5-95% ( no condensation)
Warranty 1 year
Physical Characteristics
  • Dimension: 195×135×38mm
  • Weight: 0.65kg
  • Color: Metal, Blue

Order information

HK-4EP+2E 6*100M Ethernet port, 4 ports have POE function
Note: 1. Default with US standard; GB, EU standards as request.
